FILTER SYSTEMS

---

• Flow                                         300 GPH
• Filter level                          4 MICRONS
• Filter Media Surface           183 SQ IN
• Burst Pressure                         250 PSI

• Overall Compact Size: 4 ¾” tall x 3” wide x 3 ¾” deep
• Weighs: 24 oz

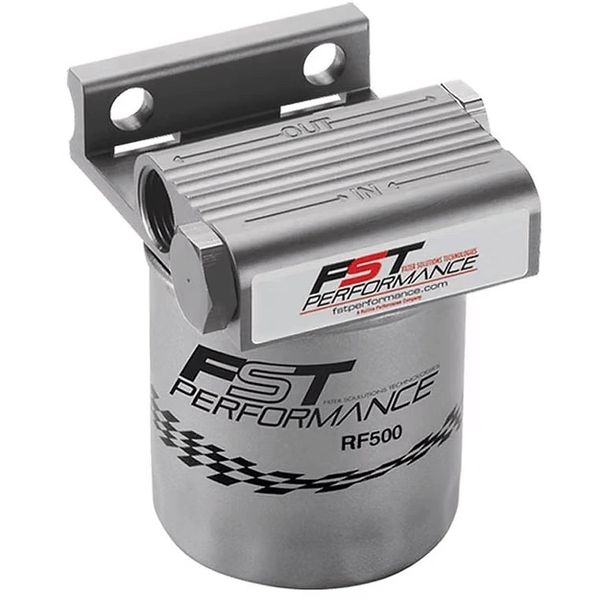

• Base/Manifold: Billet 6061-T6 aluminum base/manifold, anodized Clear (popular in the Street Rod market). Not a casting. Mounting holes: 7/16" - 2 inches center to center
• Stainless steel filter adaptors.
• Flow: 300 gallons per hour (1,800 - 1,875 lbs per hour)
• Filtering: 4 Micron FloMax™ media (gasoline-methanol-ethanol compatible!)
• Filter media surface: 183 sq in. FloMax™ enhanced water-stripping cellulose.
• Water Separation: Actually separates water to the “quiet” zone for water & heavy contaminates to settle. Not water blocking (which actually blocks the fuel).
• Burst: 250 psi (ideal for fuel injection or carburetor)
• Ports: -8 A/N (ORB). Multiple (2-In & 2-Out) for the ability to add accessories like fuel pressure gauges, etc. Also comes with two -8 to -6 reducers if needed.
• Replacement FloMax™ spin-on type filter: (# RF300) for ease of changing. Nothing to service or clean out, eliminating the chance for fuel system contamination.

Ideal for racing and/or street rods, the billet aluminum base/manifold is anodized clear for a clean, custom look.

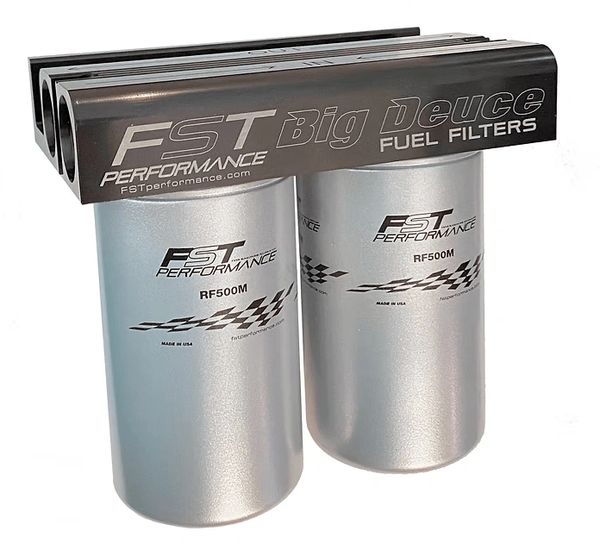

• Flow                                         550 GPH
• Filter level                          3  MICRONS
• Filter Media Surface         1158  SQ IN
• Burst Pressure                          250 PSI

• Dimensions: 8-1/4" tall x 8-3/4" wide x 5-3/8" deep
• Weighs: 7 lbs. 1 oz. (dry/empty)
• Billet: 6061-T6 billet aluminum base/manifold. Not a cheap casting.
• Stainless steel filter adaptors
• Flow: (est) 550 gallons per hour (3,340 lbs.)
• Filtering (efficiency): 3 Microns (gasoline-methanol-ethanol-& diesel compatible)
• Filter media surface: 1,158 total square inches (579 sq. in. per spin-on) FloMax™ enhanced water-stripping cellulose.
• Water Separation: Strips/separates free water to the "quiet" zone for water & heavy contaminates to settle. Not water blocking which blocks fuel flow.
• Burst: 250 psi (ideal for performance fuel injection pumps)
• Ports: -16 ORB (A/N). Multiple ports (2= IN & 2= OUT) for installation options or the ability to add accessories like fuel pressure sensor units, etc.
• Replacement spin-on type filters: (2 = FloMax™ # RF500M) for ease of changing. Nothing to service or clean out, eliminating the chance for fuel system contamination. ​

​

Ideal for racing where extra capacity or flow is needed: multiple engine offshore boats, high horsepower race engines, off road/desert racing vehicles or any performance engine that needs a high-flow, reliable, dirt-free fuel supply

• Flow                                         200 GPH
• Filter level                          3  MICRONS
• Filter Media Surface           427  SQ IN
• Burst Pressure                         250 PSI

• Overall Compact Size: 10.5” tall x 3.5” wide x 3.5” deep
• Weighs:  64 oz
• Base: 6061-T6 billet aluminum base/manifold. Not a casting. Anodized Red. Mounting holes: 3/8" - 2 inches center to center.
• Flow: 200 gallons per hour
• Filtering: 3 Micron FloMax™ media (petroleum or bio-diesel / vegetable oil)
• Filter media surface: 427 sq in!! FloMax™ enhanced water-stripping cellulose.
• Water Separation: Fuel “crashes & swirls” through base, separating fuel from water. Water settles down in base, fuel goes up through filter.
• Burst: 250 psi
• Ports: ½” NPT fuel IN & OUT ports and 3/8” NPT fluid ‘heat’ ports / Water drain port.
• Heats Fuel: 3/8” Heater ports = Use engine coolant fluid for heat source for fuel heating while engine is running feature. Stops fuel "gelling" while operating. A must with veggie/bio fuel.
• (Base) Manufactured from solid 6061-T6 billet aluminum / no castings.
• Replacement FloMax™ spin-on type filter: (# RF900D) for ease of changing. Nothing to service or clean out, eliminating the chance for fuel system contamination. A leader in bio-diesel.

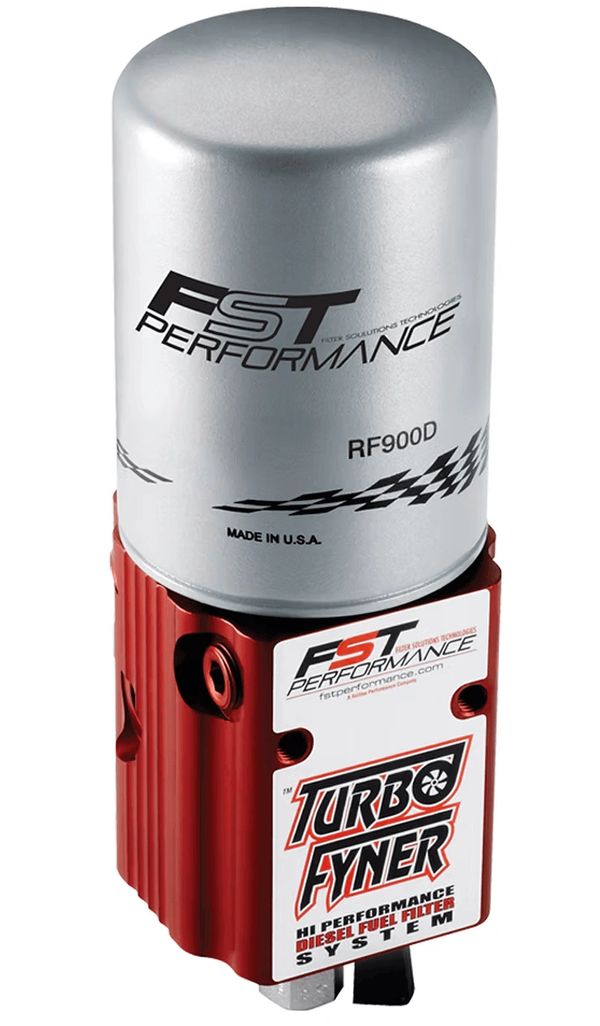

The “TurboFyner™” is an on-board diesel fuel refiner system that filters fuel, separates water from fuel, and heats fuel during cold weather operations

 4 Micron, water separating spin-on as a direct cross for Mercury Marine part numbers: 35-1604941, 35-60494, 35-802893Q, 35-802893Q1, 35-802893T, 35-805269, 35-807172, 9-37801, C35-60494A / NAPA: 3225, 3226 / Sierra: 187845, 18-7845, 18-7945 / WIX: 33225, 33226 / Fram: PS3808

 Replacement FloMax™ Spin-On for TurboFyner™ Diesel Refinement System / 427 sq.in. - High-Flow - 3 micron / Water Separation
